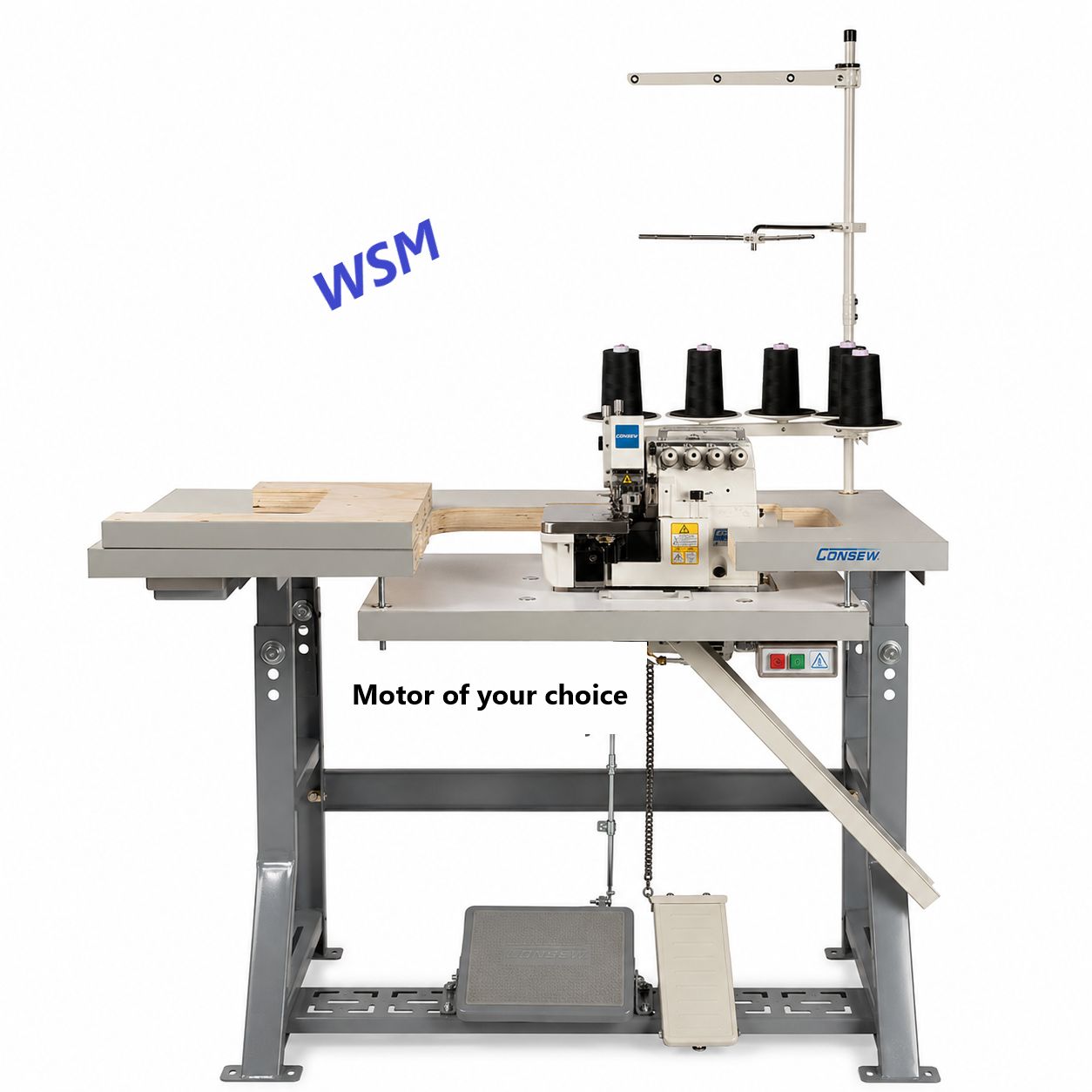

Consew CM795-2 – Two-Needle, Five-Thread High-Speed Overlock Machine.

Ships with Standard Servo Motor (500W/ 110V/ 3/4HP/ Speed control.

The Consew CM795-2 is a high-speed, industrial two-needle, five-thread overlock machine designed for medium- to heavyweight materials. With it's true safety stitch it combines overlocking and chainstitching to produce a strong, durable seam while finishing the fabric edge. This machine can also be used as a 3 thread.

The CM795-2 is an excellent choice for professional sewing operations requiring dependable production performance on woven fabrics, garments, upholstery materials, canvas, vinyl, and other medium- to heavyweight applications.

Key Features

• Two needles / five threads
• True safety stitch
• Designed for medium- to heavyweight materials
• Maximum speed up to 6,500 stitches per minute
• Differential feed for improved fabric handling
• Fully automatic lubrication
• Visual oil-flow controls
• Replaceable oil filter with continuous oil filtration
• External cooling of the oil supply
• Push-button stitch regulator
• Intermittent-action operation
• Reduced noise and vibration at high sewing speeds
• Uses standard DC x 27 needles
• Available options include electric thread trimmer, pneumatic thread trimmer, and back-tacking system

Applications

The CM795-2 is designed for general seaming and overlocking of woven fabrics and is particularly well suited for:

• Men's, women's and children's clothing
• Coats and heavier garments
• General garment construction
• Woven fabrics
• Vinyl
• Canvas
• Upholstery fabrics
• Lightweight leather
• Other medium- to heavyweight materials

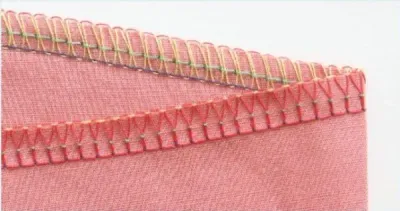

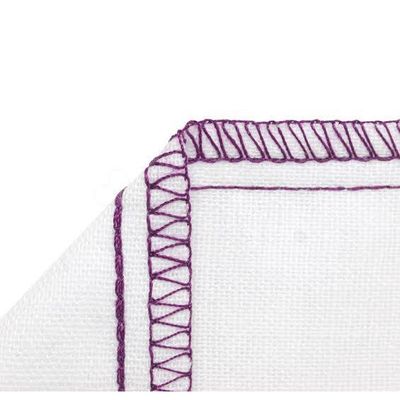

The five-thread safety stitch provides additional seam strength compared with a conventional overlock stitch, making the CM795-2 especially useful where both edge finishing and seam security are important.

Differential Feed

The differential-feed system helps control the movement of the fabric through the machine. This allows the operator to compensate for different fabric characteristics and helps produce a more consistent seam and finished edge.

Automatic Lubrication

The CM795-2 incorporates a fully automatic lubrication system with visual flow controls. The oil is continuously filtered through a replaceable filter, while an external cooling system helps maintain proper operating conditions during extended production use.

Specifications

Specifications are based on Consew's current CM795-2 documentation.

CM795-2 vs. Direct-Drive Models

The CM795-2 uses a conventional separate motor arrangement, while the CM795-DD incorporates a direct-drive motor and additional features such as an adjustable differential feed, fabric edge trimmer and swing-arm guide.

If you prefer a traditional industrial overlock setup with proven mechanical design and a separate motor, the CM795-2 is an excellent choice.

Why Choose the Consew CM795-2?

For shops, manufacturers, upholstery operations and serious home users who need a dependable five-thread safety-stitch machine, the CM795-2 offers a combination of speed, strength, automatic lubrication and differential fabric feeding.

It is built for production sewing and is especially well suited when a stronger, more secure seam is required than a standard three- or four-thread overlock can provide.

Consew CM795-2 — professional five-thread safety-stitch overlock performance for medium- to heavyweight materials.
