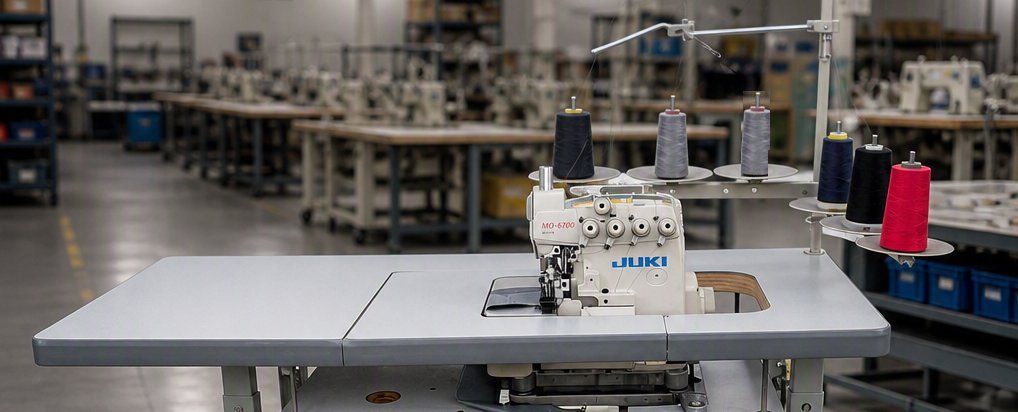

The JUKI MO-6743DA is a high-speed industrial 3-needle safety-stitch overlock machine designed for professional garment manufacturing and production sewing. Part of JUKI’s MO-6700DA Series, it combines dependable JUKI construction, excellent seam quality, and advanced semi-dry-head technology to help reduce oil staining on sewn products.

The MO-6743DA is capable of producing 3-, 4-, 5-, and 6-thread overlock/safety-stitch configurations, making it a versatile choice for applications requiring both edge finishing and secure seaming. Its three-needle configuration provides a strong, durable seam particularly suited to knitwear, sportswear, activewear, and other garments where seam strength and flexibility are important.

High-Speed Industrial Performance

The MO-6743DA has a practical maximum sewing speed of 7,000 stitches per minute, providing the production capability expected from a modern industrial JUKI overlock machine.

The machine uses a DC×27 needle system and is available in different needle-gauge configurations, including 3.2 + 2.0 mm and 4.8 + 2.0 mm, depending on the specific subclass. The standard overedge width is 3.2 mm.

Differential Feed

The adjustable differential-feed system provides excellent control when sewing stretch and non-stretch materials. Differential feed can be adjusted from approximately 1:0.7 to 1:2, allowing the operator to compensate for fabric stretching or create controlled gathering when required.

This makes the MO-6743DA particularly useful when working with fabrics that are prone to stretching, puckering, or distortion.

JUKI Semi-Dry-Head Technology

One of the major advantages of the MO-6743DA is JUKI's advanced dry-head technology. The needle-bar and upper-looper mechanisms have been redesigned to reduce the need for lubrication in those areas, while special surface treatments and grease-feeding technology improve durability and help minimize oil splashing.

The result is a cleaner sewing operation with substantially reduced risk of oil contamination on finished garments.

Designed for Production Sewing

The MO-6743DA features a robust 28 kg industrial machine head, automatic lubrication, push-button stitch-length adjustment, differential-feed adjustment with micro-adjustment, and a standard micro presser-foot lifter.

It is engineered for continuous industrial operation while maintaining the smooth, consistent stitch formation for which JUKI industrial overlock machines are known.

Typical Applications

The JUKI MO-6743DA is well suited for:

• Knitwear and stretch fabrics
• Sportswear and activewear
• T-shirts and casual garments
• Underwear and lingerie
• Lightweight to medium-weight woven fabrics
• Garment production
• Professional alterations and sample rooms
• High-volume industrial sewing

Specifications

Machine: JUKI MO-6743DA
Machine Type: 3-needle, 6-thread safety-stitch overlock
Maximum Sewing Speed: 7,000 stitches/minute
Stitch Length: 1.5–4.0 mm
Needle Gauge: 3.2 + 2.0 mm or 4.8 + 2.0 mm, depending on subclass
Overedge Width: 3.2 mm
Differential Feed: 1:0.7–1:2
Needle System: DC×27
Needle Bar Stroke: 24.5 mm
Presser Foot Lift: Approximately 6.5–7 mm, depending on configuration
Machine Head Weight: Approximately 28 kg
Lubrication: Automatic; needle-bar and upper-looper mechanisms use JUKI dry technology
Stitch Type: 3-needle safety stitching / overlock
Thread Capacity: Up to 6 threads

The JUKI MO-6743DA is an excellent choice for professional users who need more than a conventional overlock machine. Its combination of three needles, up to six threads, differential feed, high-speed operation, and JUKI's semi-dry-head technology makes it a versatile production machine for demanding garment applications.
