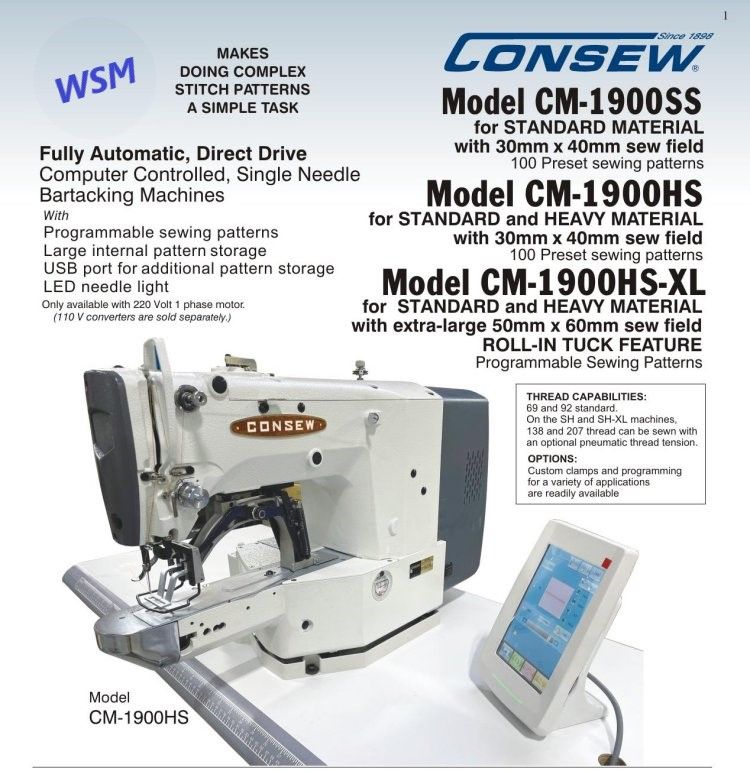

Model CM-1900SS: for STANDARD MATERIAL with 30mm x 40mm sew field & 100 Preset Sewing Patterns
Sewing Area: 30mm (W) × 40mm (L)

Features.

• Direct Drive Motor (no belt connection required)
• Stitch data contained in a pattern number can be easily changed by using the pattern enlargement / reduction function. Just enter the scale ratio through the operating screen.
• The CM-1900SS and CM-1900HS come with 100
  pre-programmed stitch patterns and you can program custom patterns yourself.
• The CM-1900HS-XL can be programmed with up to 200 stitch patterns.
• The USB port on the operating panel provides easy storage of important data and access to saved patterns.
• CM-1900HS-XL model comes with a roll-in-tuck feature. Tucks top thread underneath when starting
• Standard attachments can be easily installed
• Semi-dry head Lubrication (Hook: minute-quantity lubrication)
• Diamond Like needle bar coating (DLC). Advanced needle cooling system
• Active Tension (AT). Electronically controlled digital tension
• Only available 220 Volt 1 phase. (110 V transformers are sold separately)
• Optional: Air presser foot (clamp) lifter. (Requires compressed air)
• Custom clamps and programming for a variety of applications are readily available.

Specifications

• Number of Needles	1 (Single)
  Workspace	Standard Workspace
  Standard or Full Function
  Stitch Type
  Speed, Max (S.P.M.)	3000
  Max Stitch Length	0.1~12.7mm
  Needle Bar Stroke
  Needle Used	DPX17 standard, DPX5 optional
  Number of Stitches
  Looper	B-372-213
  Clearance Under Foot	33/64" 13mm (17mm with reverse-rotation needle-up function)
  Power	220v (110v converter available option)
