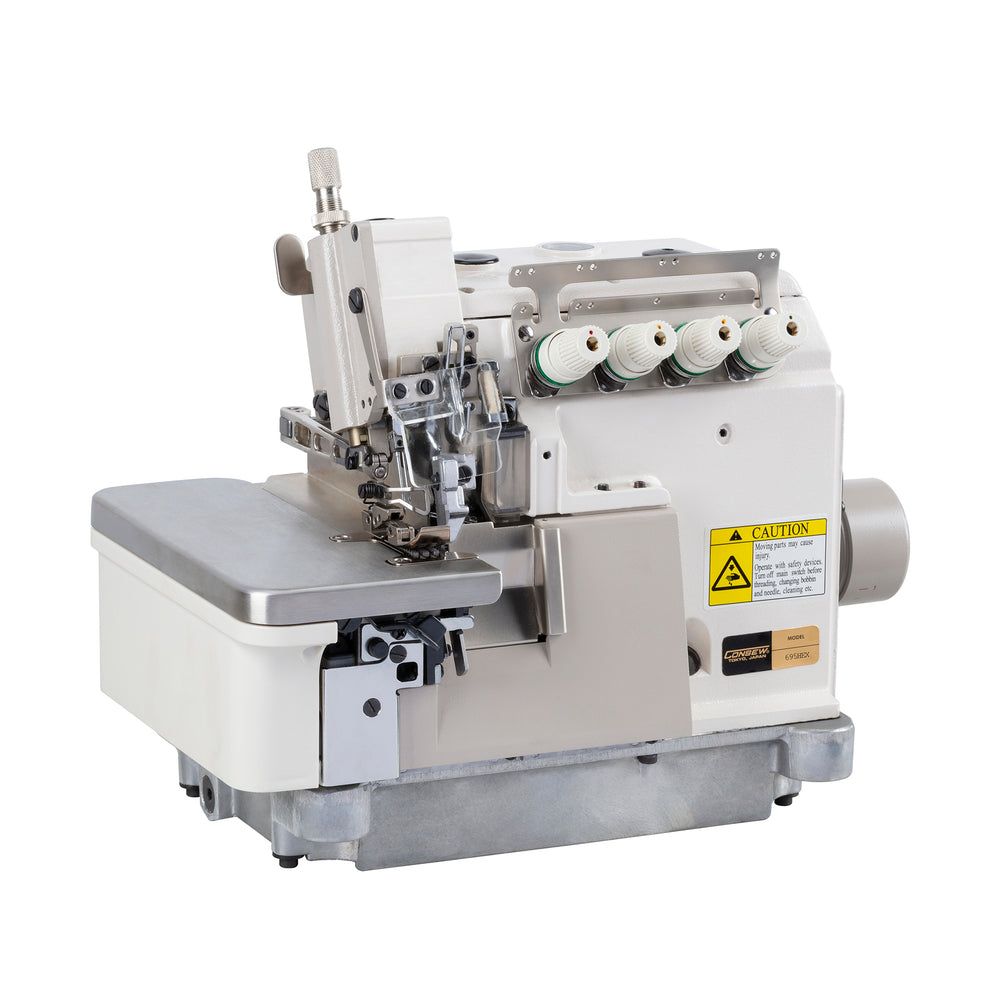

The Consew 695HEX is a high-speed, heavy-duty overlock machine designed specifically for sewing extra-heavy materials. Its tractor presser foot, aggressive feed dogs, extra-high presser-foot lift, and extended upper-looper stroke provide the feeding power needed for demanding materials that can be difficult for conventional overlock machines.

The 695HEX produces a true safety stitch and is equipped with 2 needles and 4/5 threads, making it an excellent choice for applications requiring a strong, durable overlocked seam.

Ideal for Heavy-Duty Applications

The Consew 695HEX is well suited for:

• Vinyl
• Upholstery materials
• Automotive trim
• Canvas
• Tents
• Mats
• Carpets
• 12-ply, 14 oz. denim
• Other extra-heavy materials

Features

• 2 needles, 4/5 threads
• True safety stitch
• Tractor presser foot for improved feeding over seams and heavy materials
• Extra-high 7 mm presser-foot lift
• Large, aggressive feed dogs for positive material feeding
• Extra-long upper-looper stroke for heavy-material applications
• Differential feed with micrometric adjustment
• Differential feed can be adjusted for shirring and stretching
• Push-button stitch regulator
• Intermittent sewing capability
• Fully automatic lubrication
• Visual oil-flow controls
• Replaceable oil filter for continuous oil filtration
• External cooling of the oil supply
• Standard 142X5 needles

Specifications

• Needles: 2
• Threads: 4/5
• Maximum Speed: 6,000 S.P.M.*
• Maximum Stitch Length: 5 mm
• Presser Foot Lift: 7 mm
• Needle Gauge: 5 mm standard
• Overedge Width: 5–7 mm
• Feeding: Differential feed
• Needle System: 142X5

*Maximum speed depends on the material, thread, and sewing application.

Built for Materials That Demand More

The 695HEX is not simply a conventional overlock machine with a heavier specification. Its tractor foot, aggressive feed system, high presser-foot lift, and heavy-duty looper design are intended to provide the feeding and clearance necessary when sewing thick, bulky materials.

For upholstery shops, automotive trim work, canvas and tent manufacturers, carpet and mat applications, and other demanding sewing operations, the Consew 695HEX is built to handle materials where a standard overlock machine may not be enough.
