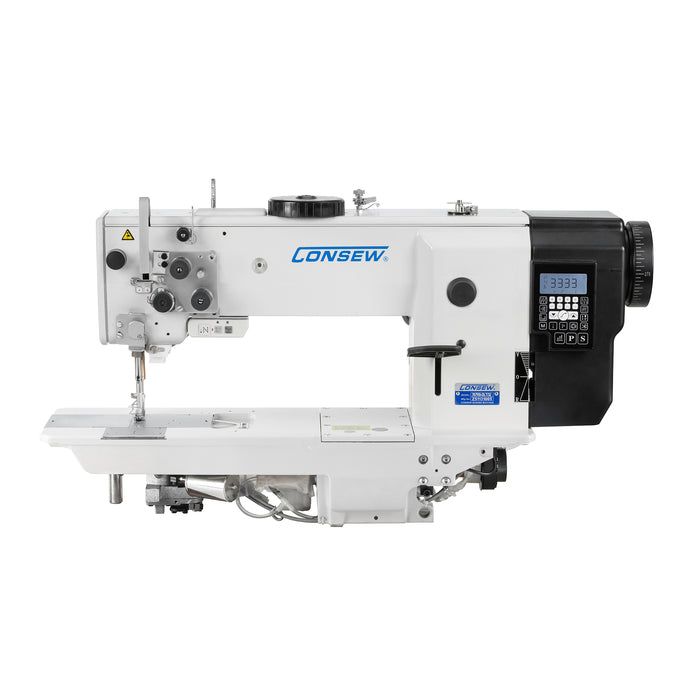

Consew 767RB-7DD/32

Heavy-Duty Long-Arm Walking Foot Sewing Machine

When you need serious sewing power and extra room to work, the Consew 767RB-7DD/32 is built to handle demanding medium- and heavy-duty applications.

This single-needle, long-arm walking foot machine features a 13.6" arm and 5.1" of vertical clearance, giving you the workspace needed for bulky projects and large pieces of material. The large 32 mm U-style bobbin provides extended sewing time between bobbin changes—especially useful for production work.

The 767RB-7DD/32 combines traditional industrial sewing performance with modern automatic functions. Its direct-drive motor provides smooth, efficient operation, while the built-in computerized controls make repetitive sewing jobs faster and more consistent.

Built for Heavy-Duty Sewing

The walking foot feeding system provides excellent material control when sewing multiple layers and difficult materials. It's an excellent choice for:

• Upholstery and furniture
• Automotive interiors
• Marine and boat upholstery
• Leather goods
• Canvas and heavy fabrics
• Tents and awnings
• Bags and cases
• Heavy-duty industrial sewing
• Production applications

Automatic Features

The 767RB-7DD/32 is equipped with a full range of automatic functions designed to improve production speed and consistency, including:

• Automatic thread trimming
• Automatic reverse
• Automatic presser-foot lift
• Needle positioning
• Programmable beginning and ending backtack
• Stitch counting
• Line tacking
• Pattern stitching
• One-button high-step function
• Built-in LED lighting
• Built-in bobbin winder

A convenient control system and knuckle switches mounted on the arm put frequently used functions right at the operator's fingertips.

Large Workspace

One of the major advantages of the 767RB-7DD/32 is its long 13.6" arm, providing substantially more working room than a conventional industrial walking foot machine.

The machine also provides up to 16 mm of pneumatic presser-foot clearance, making it easier to handle bulky assemblies and multiple layers.

Specifications

Machine Type: Single-needle walking foot
Arm Length: 13.6"
Vertical Clearance: 5.1"
Maximum Stitch Length: 9 mm
Presser Foot Lift: 9 mm manual / up to 16 mm pneumatic
Bobbin: 32 mm U
Needle System: 134-35
Maximum Speed: 3,000 stitches per minute*
Motor: Direct drive
Power: 220V single phase
Compressed Air: 40–50 PSI required
Safety Clutch: Yes
Bobbin Winder: Built in
Lighting: Built-in LED

*Maximum speed depends on material, thread, needle size, and sewing conditions. (Consew)

A Serious Production Machine

The Consew 767RB-7DD/32 is designed for customers who need more than a basic walking foot machine. Its long arm, large-capacity bobbin, automatic functions, and heavy-duty construction make it particularly well suited for professional shops and production environments where reliability and efficiency matter.

Need help deciding if the 767RB-7DD/32 is the right machine for your application? Contact us. We can help you choose the proper machine, needle, thread, and setup for the materials you sew.
