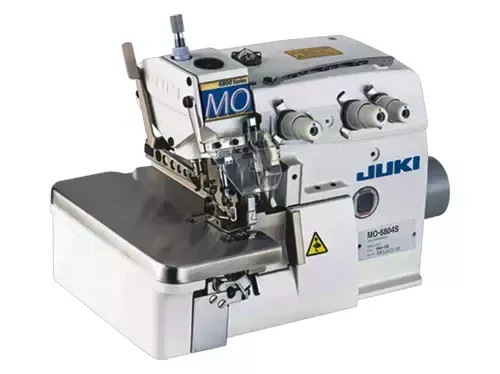

JUKI MO-6804S-0A4-150 Industrial 3-Thread Rolled Hem Overlock Machine

The JUKI MO-6804S-0A4-150 is a high-speed, industrial 3-thread overlock machine specifically configured for 1.5mm rolled hemming. It is designed for light to extra-lightweight fabrics where a clean, professional rolled-edge finish is required.

Part of JUKI's proven MO-6800S Series, the MO-6804S combines high-speed production with precise feeding, easy adjustment and excellent stitch quality. The 0A4-150 subclass is factory configured for a 1.5mm overedging width and rolled hemming, making it an excellent choice for garments and other lightweight textile applications.

Key Features

• 3-thread, 1-needle overlock
• 1.5mm rolled hem configuration
• U.S. stitch type 504
• Maximum sewing speed of 7,000 stitches per minute
• Designed for lightweight and extra-lightweight materials
• 2-row feed dog
• Adjustable differential feed from 1:0.7 to 1:2
• Stitch length adjustable from 0.6 to 3.8mm
• Built-in differential-feed micro-adjustment
• Front-access adjustment of the differential feed and feed-dog height
• Automatic lubrication
• Needle cooler and needle-thread heat remover included as standard
• Balanced machine design helps reduce operating noise and vibration

Designed for Rolled Hems

The 0A4-150 configuration is not simply a standard 3-thread overlock. It is specifically set up for 1.5mm rolled hemming, allowing the fabric edge to be neatly rolled and enclosed with thread. This makes it particularly useful for lightweight garments, scarves, decorative edges and other applications where a narrow, clean finished edge is desired.

Differential Feed

JUKI's differential-feed system helps the operator control how the material feeds through the machine. The differential-feed ratio can be adjusted for gathering or stretching, making it possible to compensate for different fabric characteristics and help produce a smooth, consistent seam.

Specifications

Specifications are based on JUKI's published MO-6800S Series documentation.

Professional JUKI Industrial Construction

The MO-6800S Series is designed for continuous industrial sewing, with an emphasis on durability, smooth operation and consistent stitch formation. JUKI also incorporates a wider and brighter needle-entry area and an optimized machine balance to make operation easier while reducing vibration and noise.

The JUKI MO-6804S-0A4-150 is an excellent choice when you need a dedicated industrial rolled-hem overlock for lightweight fabrics and want the speed, precision and durability of a true JUKI industrial machine.
